Stacks - Coding Structure in C

-STACKS
(im using dashes to maintain the indentation here)

--creating the structure
Struct stack
{
Char data [MAX];
int top;
};

--declaring the functions
char pop (struct stack *stk);
void push (struct stack *stk, char item);


--initializing in Main Program(Function)
main()
{
stack s;
s.top = -1;

push( &s , "A" ) // Calling the Push Function while inserting letter "A" into a stack
pop( &s ) // Removing the element

}


--PUSH Function 
void push (stack *stk, char item)
{
If (stk ->top < MAX -1)
{
stk->top++;
stk->data[stk->top] = item;
}
Else
printf(“stack is full \n”);
}

--POP Function
char pop (stack *stk)
{
If(stk->top > -1 )
{
char x = srk -> data[stk->top];
stk->top--;
return x;
}
Else
{
printf(“stack is empty \n”);
return 0;
}
}

 

Stack - Real Life Example - Plates in Dispenser

Source :
http://cache1.asset-cache.net/xc/87626928.jpg?v=1&c=IWSAsset&k=2&d=910C62E22B9F47AAEA80970F9EC7FC33E34209546527F31A18ED6AAA293F9C98E30A760B0D811297

Stack - Real Life Example - Idly Maker

Source : http://www.tastypalettes.com/2008/02/pillows-of-heaven.html

EBook to learn stacks _ Free

Title : Stack Computers: the new wave
Author : Philip J. Koopman, Jr.


Link to Download : http://www.ece.cmu.edu/~koopman/stack_computers/stack_computers.zip


i hope this will be a very useful for the people who are learning stacks.

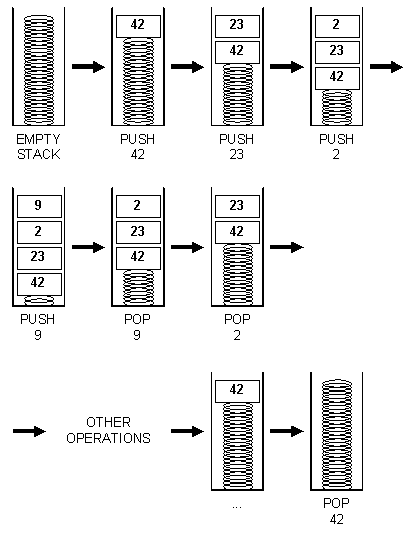

Stack - Real Life Example - Cafeteria tray example

Source : http://www.ece.cmu.edu/~koopman/stack_computers/sec1_2.html

Stacks - Introduction

-Stack is the First Data Structure in Programming.

-It is a method where we use LIFO ( LAST IN - FIRST OUT ).

LIFO stacks, also known as "push down" stacks, are the conceptually simplest way of saving information in a temporary storage location for such common computer operations as mathematical expression evaluation and recursive subroutine calling.

-It has only two fundamental operations called PUSH and POP.

--PUSH > to insert an element ( to the top )
The push operation adds an item to the top of the stack,
hiding any items already on the stack, or initializing the stack if it is empty.

--POP > to remove an element ( from the top )
The pop operation removes an item from the top of the stack, and returns this value to the caller. A pop either reveals previously concealed items, or results in an empty stack.

Next > > >

I think now its time for me to move into Stacks and Queues..
